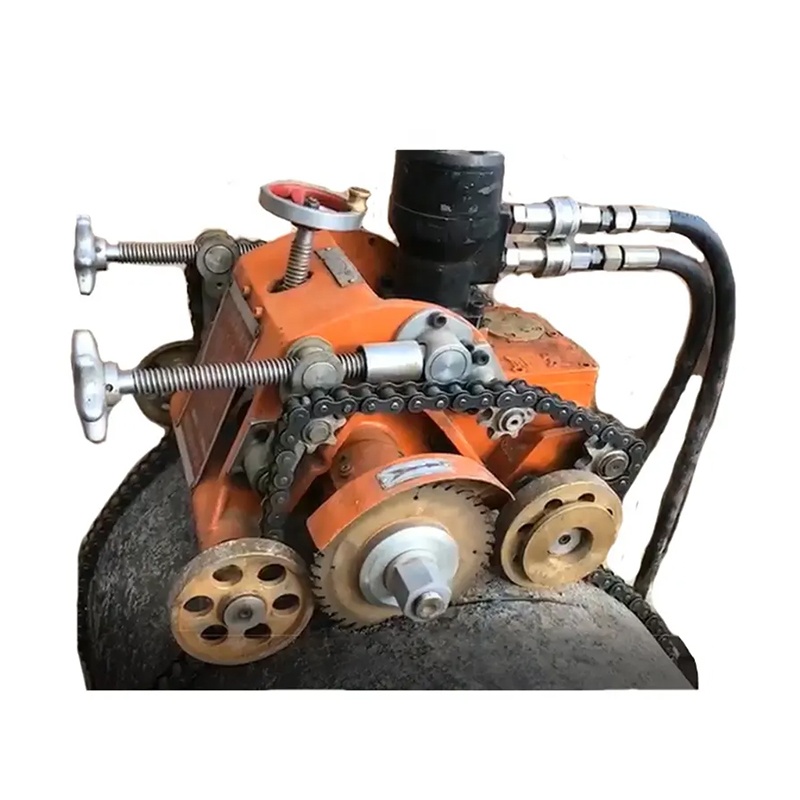

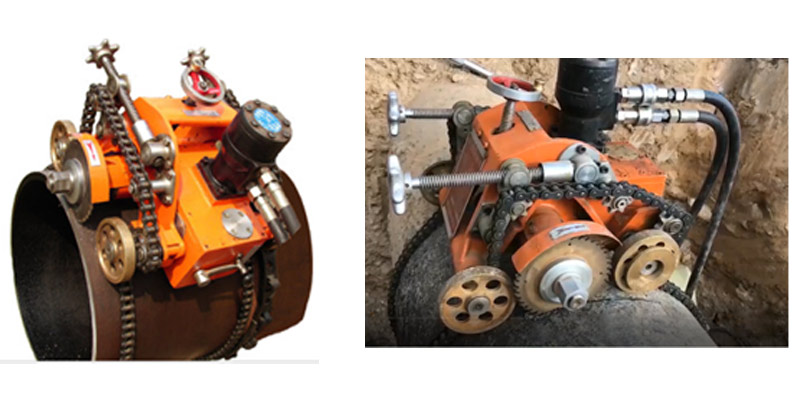

1. drive by the hydraulic power, low ratio, big torque
2. suit for the cutting of Steel Pipe or Ductile / Cast Iron Pipe
3.  cold cutting, fireless,safe for cutting of oil and gas lines

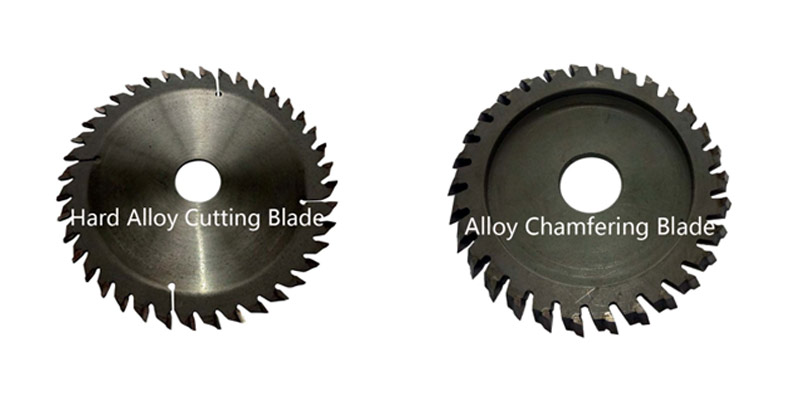

Spare Parts:

Technical Parameter :

Model No			YGJ1-1
Cutting pipe diameter		mm	300～1200
Maximum thickness of cutting pipe		mm	≤20
Crawling (cutting) speed		mm/min	28-35
Dimension		mm	500×481×370
Main machine weight		Kg	52
Hydraulic system	Chain specification		GB/T124391997 12A single row
	Blade rotation speed	circle/min	60-75
	Motor power	Kw	4
	Motor rotation speed	circle/min	1440
	Voltage	V	380
	System flow	L/min	0-36
	System rated pressure	Mpa	0-31
	System working pressure	Mpa	1-5
Packing Size ( Main Machine)		mm	720x660x450
Packing Size(Hydraulic Power Station)		mm	830x540x800
Total Weight		Kg	284
