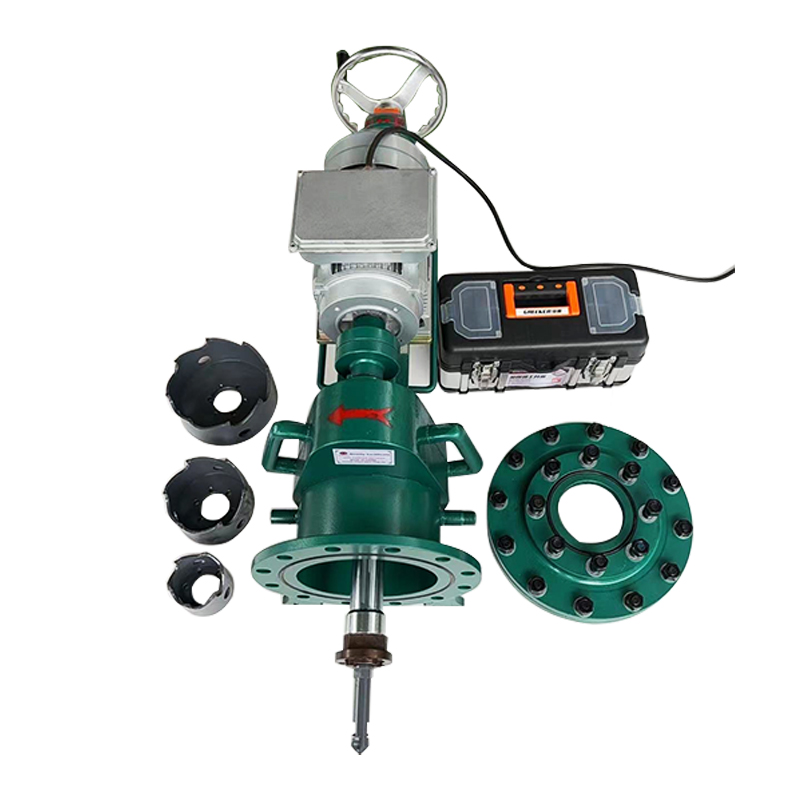

Electric Hot Tapping Machine HT200
HT200 Model Hot Tapping Machine can be used for hot tap for branch connnection from mains.
It is suit for Carbon Steel Pipe, Ductile Iron Pipe, Cast Iron Pipe, Concrete Pipe, Plastic Pipe Hot Tapping .Our Hot Tapping Machines are widely appplied in Water, Oil, Gas, Steam,Chemical In dustry .
Specification
* 4-inch through 8-inch (DN100 to DN200) hot taps
* Maxium working pressure: 25 bar at 38℃（100°F）
* Maxium operating temperature: 200℃
* Spindle Transimission: Electric
* Feed Mode: Manual
* Motor: Single Phase,1.5Kw, 220V
* Working Stroke: 500mm
* Spindle Speed: 40r/min
* Connection with Valve: Flange Connection
* Flange Standard: BS PN10/16 ASME#150
* Dimension: 960x380x500mm
* Weight: 57 Kgs
Key Features
List of Size
| Model | Range of Hot Tapping Size | Drive Mode | Feed Mode | Feed Volume | Working Stroke | Spindle Speed | Motor Power | Motor Voltage | Tapping Time | Working Pressure |
| mm/inch | mm/r | mm | RPM | Kw | V | min | ||||
| HT50 | DN25-DN50 3/4''-2'' | Manual | Manual | 1.5 | 240/350 | / | / | / | 10-20 | ≤ 25 bar |
| HT100 | DN50-DN100 2''-4'' | Electric | Manual | 0.07-0.2 | 370 | 53 | 0.75 | 220 | 15-30 | ≤ 25 bar |
| HT200 | DN100-DN200 4''-8'' | Electric | Manual | 0.07-0.2 | 500 | 40 | 1.5 | 220 | 15-30 | ≤ 25 bar |
| HT200 | DN50-DN200 2''-8'' | Electric | Manual | 0.07-0.2 | 500 | 40 | 1.5 | 220 | 15-30 | ≤ 25 bar |
| HT300 | DN100-DN300 4''-12'' | Electric | Manual | 0.07-0.2 | 600 | 40 | 1.5 | 220/380 | 15-30 | ≤ 25 bar |
| HT400 | DN250-DN400 10''-16'' | Electric | Manual | 0.07-0.15 | 600/800 | 30 | 1.5 | 380 | 15-40 | ≤ 25 bar |
| HT600 | DN500-DN600 20''-24'' | Electric | Manual/Automatic | 0.3 | 900 | 30 | 4 | 380 | 30-60 | ≤ 25 bar |
| HT800 | DN500-DN800 20''-32'' | Electric | Manual/Automatic | 0.3 | 1000 | 20 | 7.5 | 380 | 40-80 | ≤ 25 bar |
| HT1000 | DN500-DN1000 20''-40'' | Electric | Manual/Automatic | 0.3 | 1250 | 20 | 7.5 | 380 | 120-180 | ≤ 25 bar |
| HT1600 | DN1000-DN1600 40''-64'' | Electric | Manual/Automatic | 0.15-4 | 1450/2000 | 12 | 15 | 380 | 120-180 | ≤ 25 bar |
