ANQING GREAT WALL PIPELINE CO.,LTD

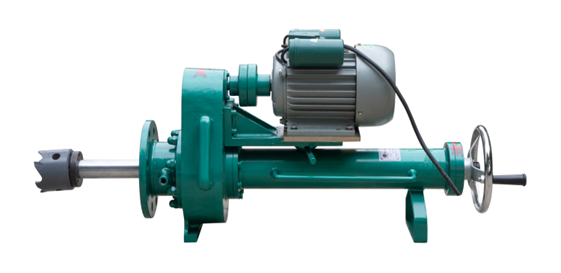

HT100 Model Hot Tapping Machine can be used for hot tap for branch connnection from mains.
It is suit for Carbon Steel Pipe, Ductile Iron Pipe, Cast Iron Pipe, Concrete Pipe, Plastic Pipe Hot Tapping .
Our Hot Tapping Machines are widely appplied in Water, Oil, Gas, Steam,Chemical Industry .
Specification
* 2-inch through 4-inch (DN50 to DN100) hot taps
* Maxium working pressure: 25 bar at 38℃（100°F）
* Maxium operating temperature: 200℃
* Spindle Transimission: Electric
* Feed Mode: Manual
* Motor: Single Phase,0.75Kw, 220V
* Working Stroke: 370mm
* Spindle Speed: 53r/min
* Connection with Valve: Flange Connection
* Flange Standard: BS or ASME Standard
* Dimension: 820x370x460mm
* Weight: 42 Kgs
Key Features
List of Size
Model
Range of Hot Tapping Size
Drive Mode
Feed Mode
Feed Volume
Working Stroke
Spindle Speed
Motor Power
Motor Voltage
mm/inch
mm/r
mm
RPM
Kw
V
HT50
DN25-DN50 3/4''-2''
Manual
Manual
1.5
240/350
/
/
/
HT100
DN50-DN100 2''-4''
Electric
Manual
0.07-0.2
370
53
0.75
220
HT200
DN100-DN200
4''-8''
Electric
Manual
0.07-0.2
500
40
1.5
220
HT200
DN50-DN200 2''-8''
Electric
Manual
0.07-0.2
500
40
1.5
220
HT300
DN100-DN300
4''-12''
Electric
Manual
0.07-0.2
600
40
1.5
220/380
HT400
DN250-DN400 10''-16''
Electric
Manual
0.07-0.15
600/800
30
1.5
380
HT600
DN500-DN600 20''-24''
Electric
Manual/Automatic
0.3
900
30
4
380
HT800
DN500-DN800 20''-32''
Electric
Manual/Automatic
0.3
1000
20
7.5
380
HT1000
DN500-DN1000 20''-40''
Electric
Manual/Automatic
0.3
1250
20
7.5
380
HT1600
DN1000-DN1600 40''-64''
Electric
Manual/Automatic
0.15-4
1450/2000
12
15
380
