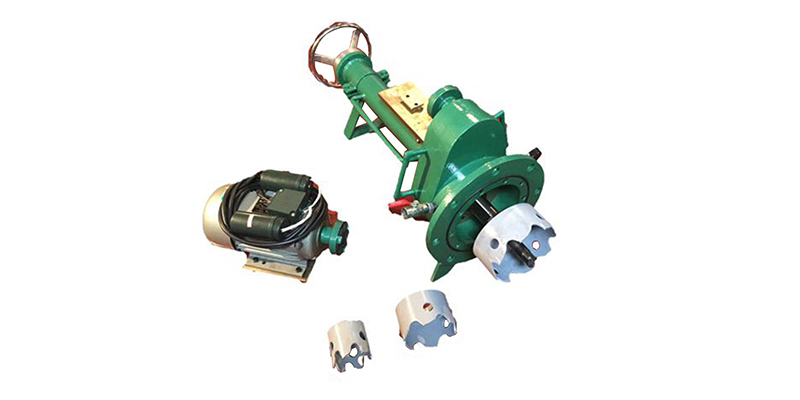

HT200 Model Electric Hot Tapping Machine

Electric Hot Tapping Machine HT200

HT200 Model Hot Tapping Machine can be used for hot tap for branch connnection from mains.

It is suit for Carbon Steel Pipe, Ductile Iron Pipe, Cast Iron Pipe, Concrete Pipe, Plastic Pipe Hot Tapping .
Our Hot Tapping Machines are widely appplied in Water, Oil, Gas, Steam,Chemical In dustry .

Specification
* 4-inch through 8-inch (DN100 to DN200) hot taps
* Maxium working pressure: 25 bar at 38℃（100°F）
* Maxium operating temperature: 200℃
* Spindle Transimission: Electric
* Feed Mode: Manual
* Motor: Single Phase,1.5Kw, 220V
* Working Stroke: 500mm
* Spindle Speed: 40r/min
* Connection with Valve: Flange Connection
* Flange Standard: BS PN10/16 ASME#150
* Dimension: 960x380x500mm
* Weight: 57 Kgs

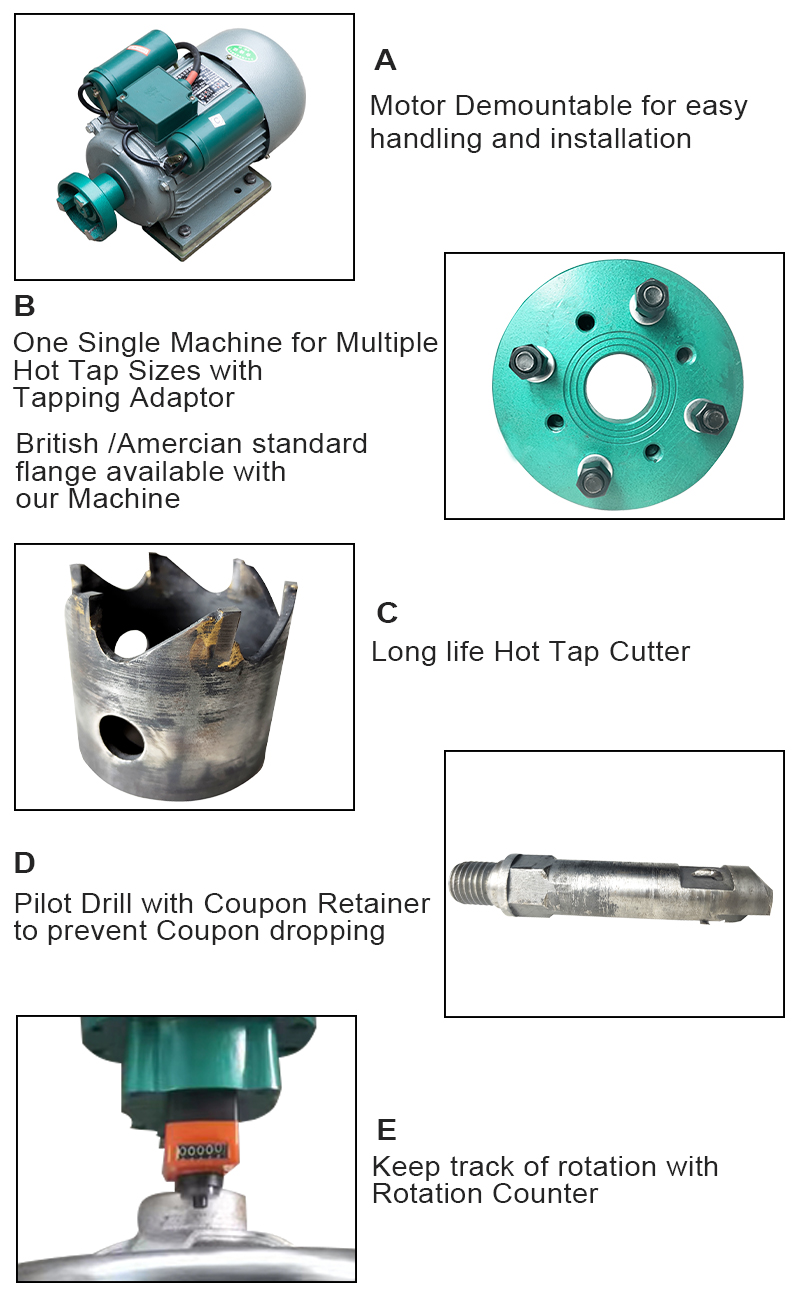

Key Features

List of Size

Model Range of Hot Tapping Size Drive Mode Feed Mode Feed Volume Working Stroke Spindle Speed Motor Power Motor Voltage Tapping Time Working Pressure

mm/inch mm/r mm RPM Kw V min

HT50 DN25-DN50 3/4''-2'' Manual Manual 1.5 240/350 / / / 10-20 ≤ 25 bar

HT100 DN50-DN100 2''-4'' Electric Manual 0.07-0.2 370 53 0.75 220 15-30 ≤ 25 bar

HT200 DN100-DN200 4''-8'' Electric Manual 0.07-0.2 500 40 1.5 220 15-30 ≤ 25 bar

HT200 DN50-DN200 2''-8'' Electric Manual 0.07-0.2 500 40 1.5 220 15-30 ≤ 25 bar

HT300 DN100-DN300 4''-12'' Electric Manual 0.07-0.2 600 40 1.5 220/380 15-30 ≤ 25 bar

HT400 DN250-DN400 10''-16'' Electric Manual 0.07-0.15 600/800 30 1.5 380 15-40 ≤ 25 bar

HT600 DN500-DN600 20''-24'' Electric Manual/Automatic 0.3 900 30 4 380 30-60 ≤ 25 bar

HT800 DN500-DN800 20''-32'' Electric Manual/Automatic 0.3 1000 20 7.5 380 40-80 ≤ 25 bar

HT1000 DN500-DN1000 20''-40'' Electric Manual/Automatic 0.3 1250 20 7.5 380 120-180 ≤ 25 bar

HT1600 DN1000-DN1600 40''-64'' Electric Manual/Automatic 0.15-4 1450/2000 12 15 380 120-180 ≤ 25 bar
